Training a policy inside a safety filter¶

Most of this repo trains a policy and then wraps it in a safety filter at evaluation time. This page is about the other direction: putting the filter around the environment during training, so the task policy learns while a fallback controller guarantees it (nearly) never fails.

This is the PORL setting — Provably Optimal Reinforcement Learning under Safety Filtering (Oh, Nguyen, Hu, Fisac; IASEAI 2026, arXiv:2510.18082). The claim under test: a task policy trained inside a filter reaches the same asymptotic return as one trained bare, at the same rate or slightly faster, while making near-zero catastrophic transitions during training — and is very safe when later deployed under the same filter.

The two arms¶

The experiment is an A/B with a shared code path:

Control (unfiltered): ordinary training on the env's own reward.
Treatment (filtered): every action the policy proposes is certified by a safety filter built from a fallback twin; when the proposal is uncertified the filter substitutes the fallback's action, and the executed action — not the proposal — is what enters the replay buffer. Storing the proposal against the resulting transition would fit the critic to a transition that never happened. Off-policy learning makes the substitution exactly correct with no importance correction, which is why filtered training is run with SAC — specifically safety_sb3.CumulativeSAC1P on the tensor path, not stock SB3 SAC, since the readback of the executed action needs the tensor collector stock SAC lacks.

Both arms count failures the same way through one shared accounting path (see Failure counting is always on), so the headline plot measures the policies, not the instrumentation.

Result: the Go2 velocity walker¶

We ran both arms on go2_walker_filtered (a Go2 velocity walker; filter: critic built from a go2_stabilize ReachAvoidSAC2P fallback), seed 0, capping the comparison at 20M env-steps — the point where both arms plateau.

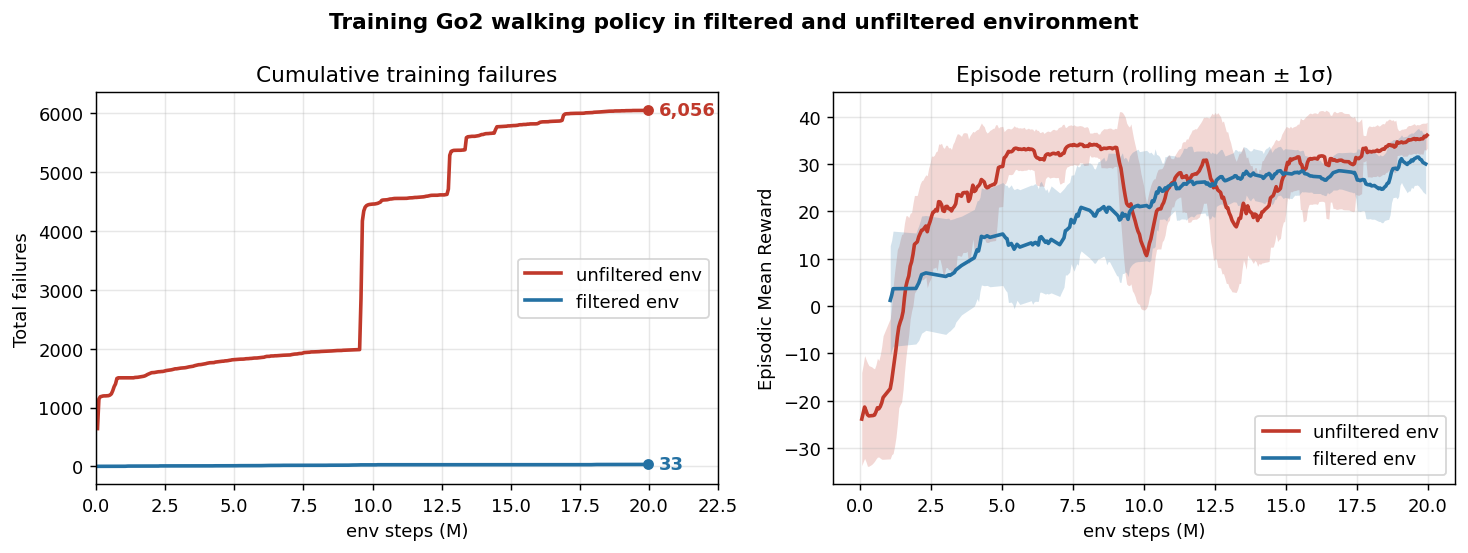

Training a Go2 walking policy in a filtered vs. unfiltered environment

Training-time safety — the headline. By 20M steps the unfiltered arm had accumulated 6,056 catastrophic training failures (safety/failures_total); the filtered arm had 33 — a ~180× reduction. The filtered curve is flat near zero from the first step: the fallback catches unsafe proposals before they become terminations, so the policy essentially never falls during training.
No task-performance tax. The two arms reach comparable return (ep_rew_mean ≈ 35 filtered vs ≈ 37 unfiltered at the cap; the rolling ±1σ bands overlap throughout and trade the lead). Training inside the filter did not slow learning or cap the achievable return — it removed the failures for free.
The policy weans off the fallback. safety/engaged_frac — the fraction of steps the fallback actually drove — starts around 0.21 and falls to ~0.10 by 20M as the task policy learns to stay safe on its own.

This is the PORL claim made concrete: a policy trained inside a safety filter reaches the same performance as one trained bare while making orders of magnitude fewer failures along the way.

Scope of this result

Single seed (seed 0), compared at a 20M-step cap; the return band is a rolling mean ± 1σ over the (noisy) single run. It demonstrates the failures-vs-return trade cleanly but is not a multi-seed benchmark.

The config path (recommended)¶

Add a safety_filter: block to a training config and run it through examples/train.py. Presence of safety_policy selects the treatment arm; its absence is the control arm.

# configs/go2_walker_filtered.yaml (excerpt)
family: off_policy                 # SAC — required for the executed-action readback
task: go2_walker_filtered          # a cumulative task with dense_margins

safety_filter:
  safety_policy: runs/go2_stabilize_reachavoidsac2p/final_model.zip  # the fallback twin
  filter: critic                   # value | critic | qcbf
  eps: 0.1                         # switching threshold
  smoothing: false                 # canonical switch (not HeuristicSmoothing)

# treatment arm
python examples/train.py --config configs/go2_walker_filtered.yaml

# control arm: same recipe, no filter (clear safety_policy on the CLI)
python examples/train.py --config configs/go2_walker_filtered.yaml \
    --safety-filter safety_policy= --run-suffix control

--safety-filter KEY=VAL (repeatable) overrides one key of the block at a time, mirroring --env-override. Only the SAC (off_policy) trainer reads the block.

key	meaning	default
`safety_policy`	fallback twin checkpoint; present → filtered, absent → control	—
`filter`	composition: `value` \| `critic` \| `qcbf`	`critic`
`eps`	switching threshold (hand over when the monitored margin ≤ eps)	`0.0`
`smoothing`	use `HeuristicSmoothingIntervention` instead of the canonical switch	`false`

The rollout/gameplay monitors are deliberately not offered here: a shadow sim inside the training loop is a separate design question.

The library path¶

Under the config is a small env wrapper you can use directly:

from robot_safety_sandbox import make_tensor
from robot_safety_sandbox.eval.filters import SwitchCfg, build_filter
from robot_safety_sandbox.eval.policies import load_twin, safety_modules
from robot_safety_sandbox.filtered_env import FilteredTensorEnv

env = make_tensor("go2_walker_filtered", num_envs=1024, device="cuda:0")

model, norm = load_twin("runs/go2_stabilize_reachavoidsac2p/final_model.zip", "cuda:0")
mods = safety_modules(model, env.num_envs, "cuda:0"); mods["norm"] = norm
bundle = build_filter("critic", mods, env, switch=SwitchCfg(eps=0.1))

env = FilteredTensorEnv(env, bundle.filt, norm=norm)   # now train `env` with a SAC learner

FilteredTensorEnv(env, filter) publishes the executed action on env.executed_action; the off-policy collector (safety_sb3.sac_base._collect_rollouts_tensor) reads it back so the buffer holds the transition that really happened. Passing filter=None gives a transparent pass-through (every transition is the policy's own action) — but the control arm normally just uses the bare env, which already counts failures.

Failure counting is always on¶

Because this is a safety codebase, every training env reports how often it fails during training — no flag, no wrapper. The base tensor env (MjlabTensorSafetyEnv) folds each step into counters drained through metrics() as safety/*:

metric	meaning
`safety/failures_total`	cumulative real terminations (not timeouts) over the run
`safety/failures_per_1k`	the same, per 1000 env-steps in the window
`safety/failure_rate`	fraction of episodes this window ending in failure
`safety/episodes`	episodes ended this window
`safety/margin_mean`, `safety/margin_min`	the task margin `g` (only when the env computes one)
`safety/engaged_frac`	fraction of env-steps the fallback drove (filtered arm only)

safety/failures_total is the headline plot's y-axis. The filtered arm's ep_len_mean (logged by the learner) is the sanity check: it must sit at the episode limit essentially from step one, or the filter is not doing its job.
